1.Double blade rotation cold cutting
2.Man-computer interface design
3.LCD touch screen
4.High speed & High precision cutting
5.Anti-jamming capability
6.Lower Machinery Malfunctionrate
7.Maintain easily & long life
8.Excellent cuting edge, no burrs & save costs
EMAIL:flyingsaw@scontor.netContor teo blde flying saw machine for ERW pipline , advantage:High-tech equipment, realization of large-size high-speed cutting online. Adopts double blade Polar coordinate with two-axis motion control technology. No burrs, low noise and high-quality cutting. Suitable for medium and large diameter pipe with Thick-walled and high-strength. Square pipe and rectangular pipe cutting as well.
|
Model |
Size(mm) | Thickness(mm) | Length(m) | Precision(mm) | Speed(m/min) |
| CTFX165 |
Ф60-165 |
2.5-7.0 | 5-12 | ≤±3 | max.50 |
| CTFX219 | Ф89-129 | 3.5-7.0 | 6-12 | ≤±3 | max.40 |
| CTFX273 | Ф114-273 | 4.0-10.0 | 6-12 | ≤±3 | max.40 |
| CTFX325 | Ф165-325 | 5.0-12.7 | 6-12 | ≤±3 | max.35 |
| CTFX377 | Ф165-377 | 5.0-12.7 | 6-15 | ≤±3 | max.35 |
| CTFX406 | Ф165-406 | 5.0-14.0 | 6-15 | ≤±3 | max.35 |
| CTFX426 |
Ф165-42 |
5.0-16.0 | 6-15 | ≤±3 | max.35 |
| CTFX508 | Ф165-508 | 5.0-16.0 | 6-18 | ≤±3 | max.35 |
| CTFX630 | Ф219-630 | 6.0-16.0 | 6-18 | ≤±3 | max.30 |
| CTFX660 | Ф219-660 | 8.0-22.0 | 6-18 | ≤±3 | max.30 |
CTFX 219 double blade flying saw

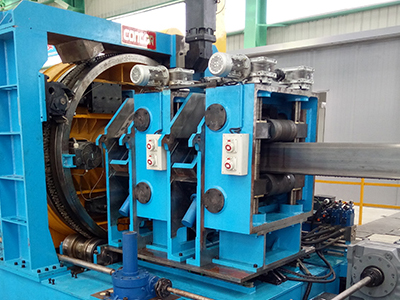

406 two blade flying saw
