round pipe: φ89—φ219mm
square pipe: 75*75—150*150mm
rectangle pipe: MAX.100*200mm
thickness: 2.0～8.0mm
EMAIL:flyingsaw@scontor.net
Click here watch Video

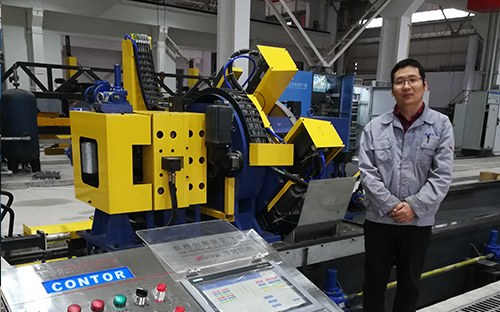

Contor customized two double flying saw machine for ERW pipeline, adopts two TCT saw blade, save blades costs and raise the cutting speed.fit for big size wall thickness pipe:
|
Pipe Parameter |
|
| round pipe | φ89—φ219mm |
| square pipe | 75*75—150*150mm |
| rectangle pipe | Max. 100*200mm |
| thickness | 2.0～8.0mm |
| cutting precision | ±1.5mm |
| cutting length | 4～10m |
| Design & manufacture CNC cutting machine according to customer's requirement | |
| Equipment configuration | |
| control system | servo system+Contor motion controller |
| cutting type | double-blade mechanical milling |
| drive motor | servo motor |
| Spindle motor | two servo motors |
| tape rotation motor | two servo motors |
| feedinng Motor | two servo motors |
| linear Guides | Hiwin/THK |
| touch screen | 12 inch color HMI |

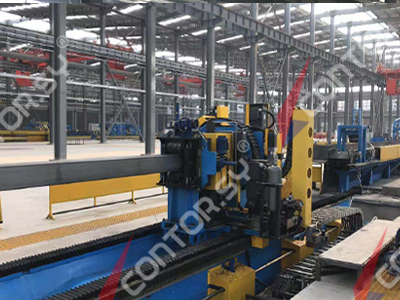

CTFX 219 double blade flying saw

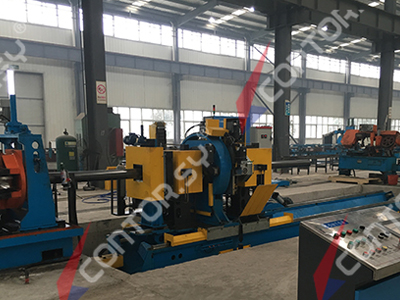

406 two blade flying saw
